Series： ExpertVersion： V1.0Manufacturer： TILLUME
1. RGBWW 24V Spot #

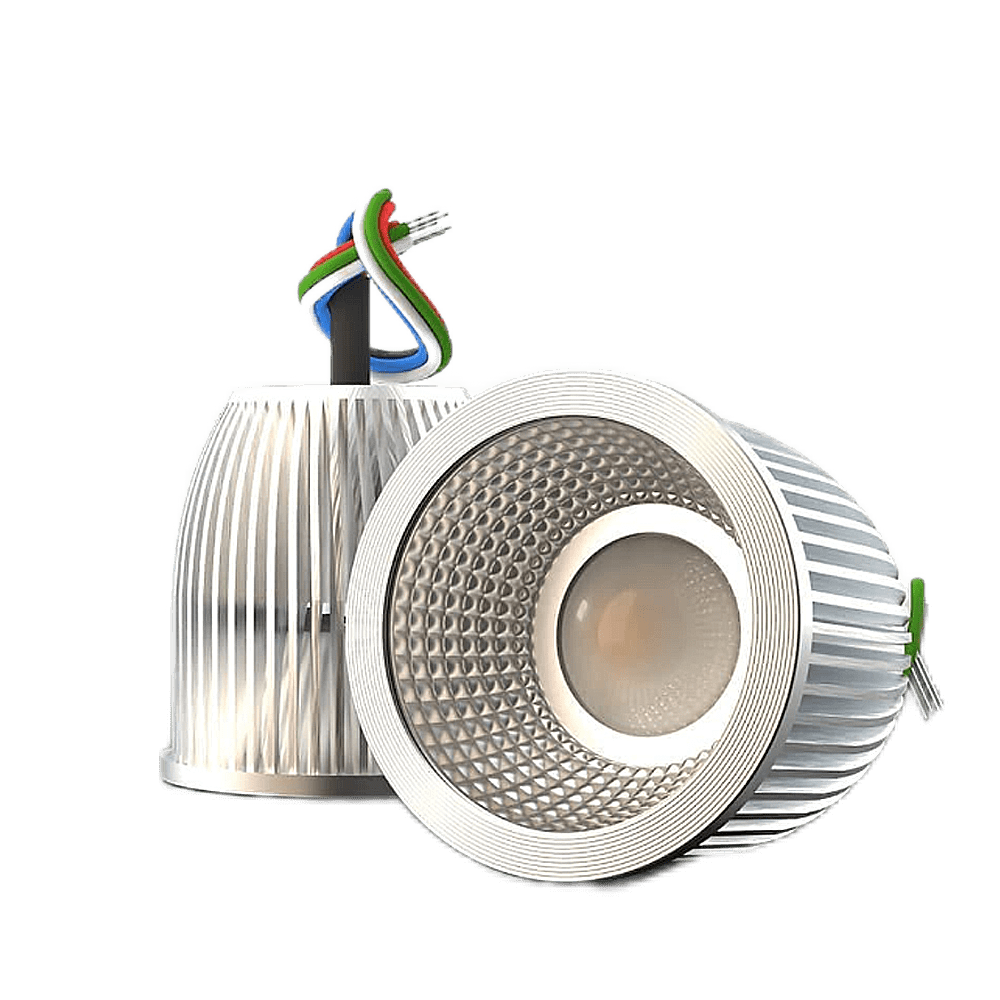

8W RGBW 24V LED Spot 2. Core Parameters # Optical Performance #
Parameter Rated Value Note1 Luminous Flux 410LM Red Channel 310LM Green Channel Blue Channel Warm White Channel Luminous Efficiency note2 @4 channel ALL Turn On ≥50lm/W
Remarks: The spot should work with constant voltage PWM dimmers operated by KNX, DALI, DMX, Loxone and so on.
Parameter Rated Value Note2 Color Temperature Range Red, Green, Blue, Warm White Warm White Channel 2850K Color Rendering Index @4 Channels ALL Turn On Note 3 >90 Color Fidelity Index >92 Color Saturation Index >100 Standard Deviation of Color Matching（SDCM <3 Beam Angle 60 Degree
Note 1 : The Luminous Flux
Note 2 : CCT tolerance: 2850K is ±50K
Note 3 : The Vaule is General color rendering index (Ra)
Note 4 : All tests were conducted under controlled ambient temperature conditions (25°C)
Electrical Characteristics #
Parameter Rated Value Note.5 Power @4 channel ALL Turn On 8W Each Channel 2W Input Voltage 24V 1. Min. Input Voltage 23V 2. Max. Input Voltage 25V Current @RGBWW Channels >0.29A 1. Red Channel 0.04~0.046A 2. Green Channel 0.08~0.086A 3. Blue Channel 0.03~0.036A 4. White Channel 0.125~0.135A
Note5 : the wattage consistency deviation range is approximately ±5%
Note6 : Test recorded after 1 hour of continuous operation.
Dimmable and Tunable White # Parameter Data Dimming Methods 24V PWM Support PWM Frequency 100Hz to 20KHz Note7 CCT Adjust Range Red, Green, Blue, Warm White Dimming Range 0.1%~100% Note8 Compatibility & Noise Matching the mainstream controller in the market Note9
Note7 : The Spot circuit response time is minimum 100nS, Considering that high-frequency PWM will cause EMC problems and require higher controller performance, we recommend a dimming frequency of no more than 8KHz.
Note8 : The dimming depth generally depends on the performance of the LED controller. As long as the time of one cycle is greater than 500nS, the spot will work normally.
Note9 : We know that customers use the with MDT, LUANTONE, LOXONE controllers and work well.
3.Mechanical Structure # Physical Parameters #
Parameter Data Housing Material 6063 aluminium Heat Structure Fin design Chip Type COB IP Grade IP20 Dimension 49.5*50mm Cable Length 150mm Weight 50g
4. Environmental Adaptability # Parameter Data Work Temperature -25℃ ~ +60℃ Storage Temperature -25℃ ~ +80℃ Humidity 45%-75% RH Lifespan >50,000hrs @Ta=25℃

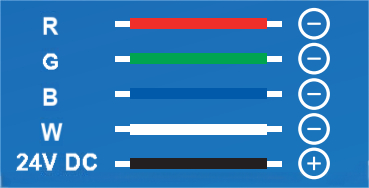

5. Wires Connection Identification #
Black Wire Connect power supply 24V positive Red Wire Connect power supply GND Red negative Green Wire Connect power supply GND Green negative Blue Wire Connect power supply GND Blue negative White Wire Connect power supply GND WW negative
6. Conformity List # EMC Directive Related Standards Requirement EN 55015 Limitation of radiated and conducted emission for electrical lighting equipment. EN 61547 Immunity requirements of equipment for general lighting purposes. EN 61000-3-2Limitation of harmonic current emissions (equipment input current ≤ 16 A per phase). EN 61000-3-3Limitation of voltage changes, voltage fluctuations, and flicker in public low-voltage supply systems.
Safety Standards for Lighting Equipment Requirement EN 60598-1 Safety of luminaires – Part 1: General requirements and tests. EN 61347-1 Safety of lamps and lamp controlgear – Part 1: General requirements and tests. EN 61347-2-13 Particular requirements for electronic control gear for LED modules. EN 62031 Safety specifications for LED modules for general lighting.
Photobiological and Electromagnetic Safety Standards Requirement EN 62471 Photobiological safety of lamps and lamp systems. EN 62493 Assessment of human exposure to electromagnetic fields from information technology equipment.
